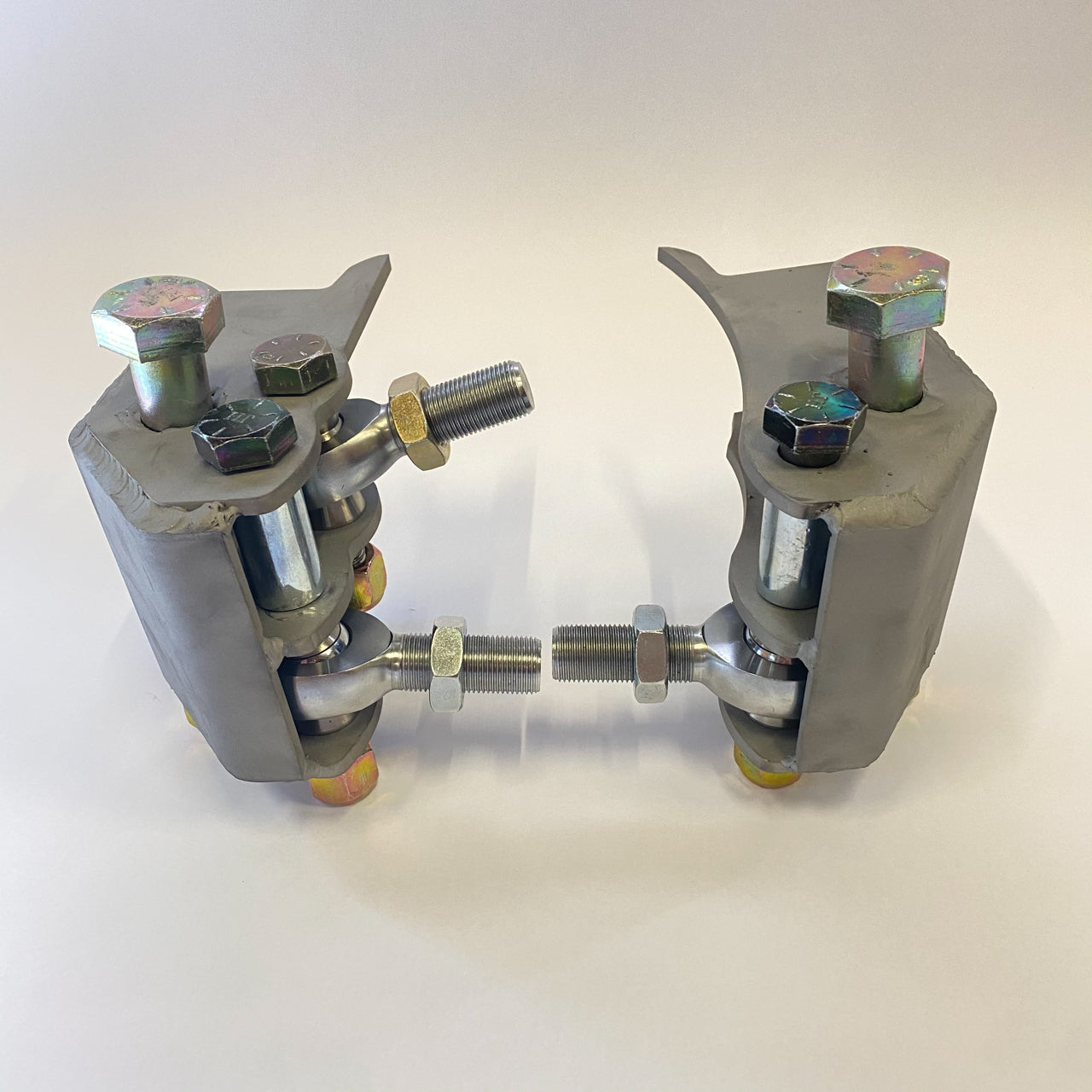

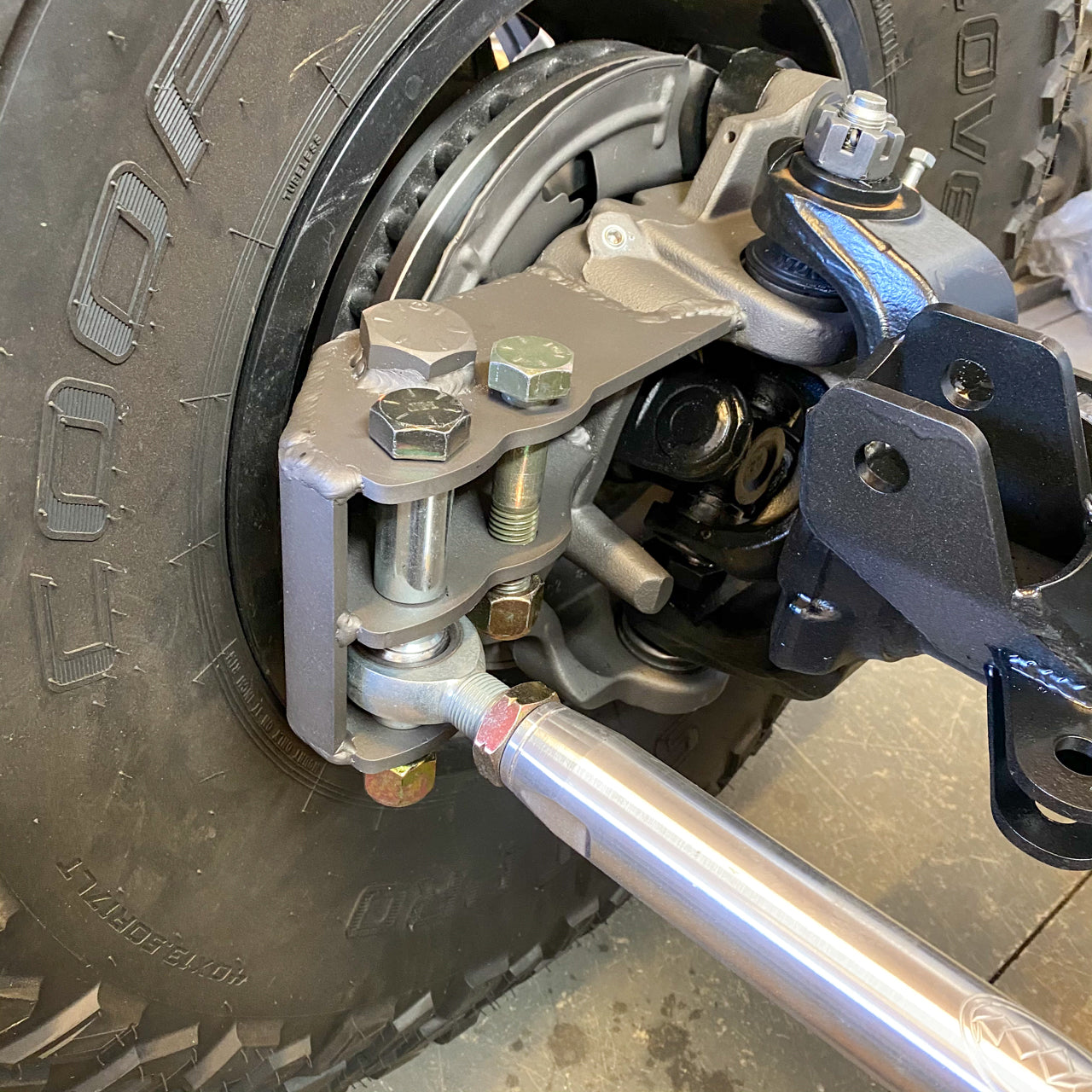

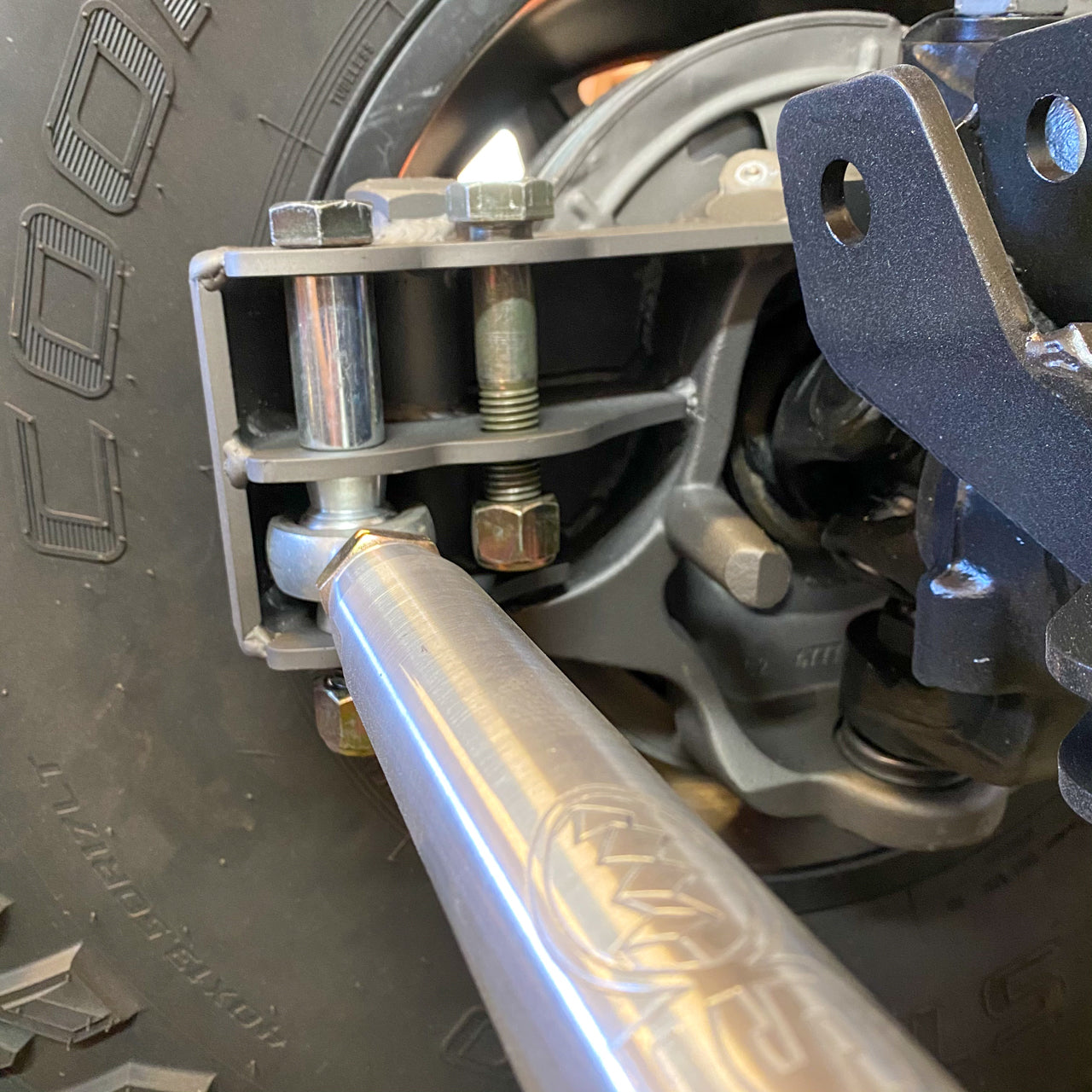

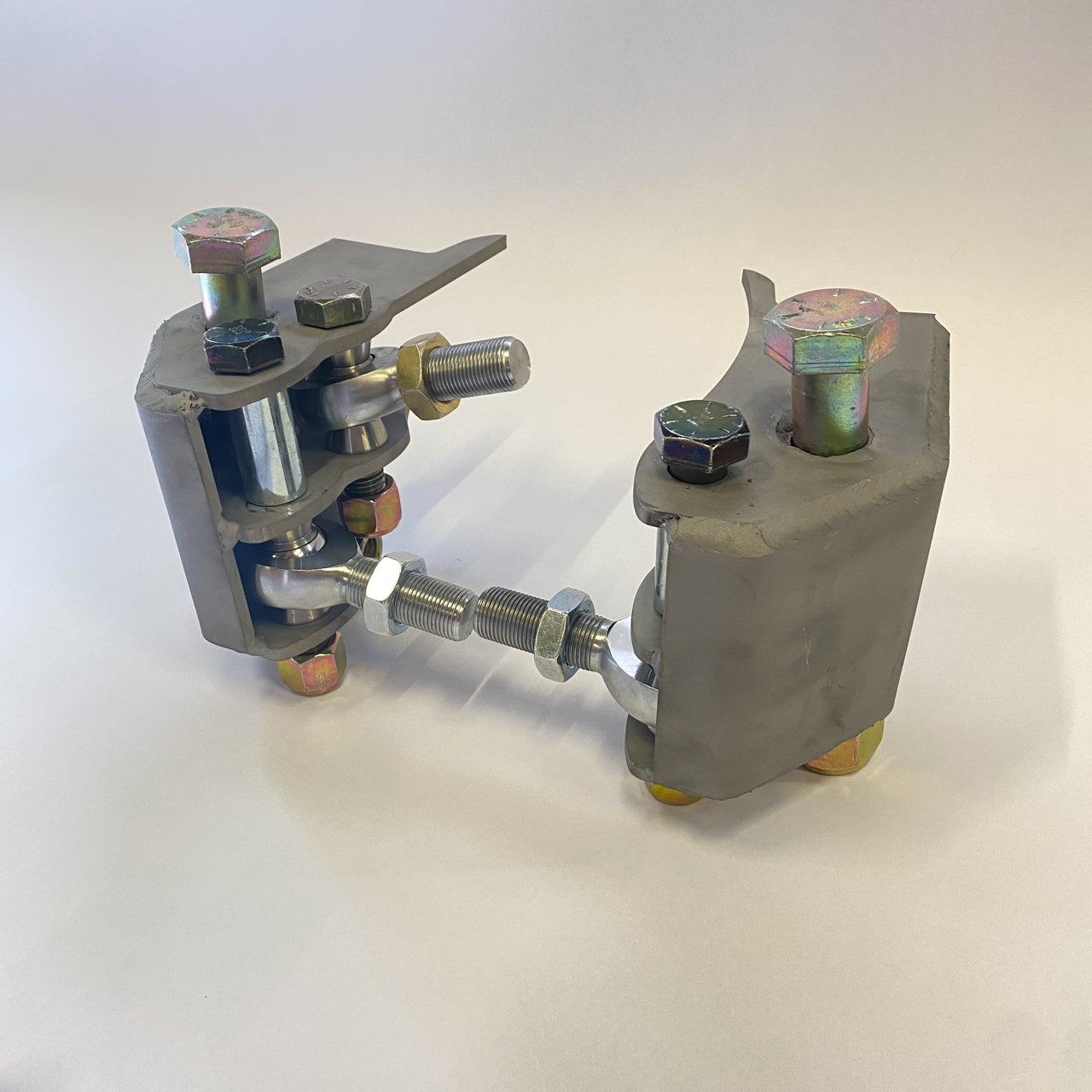

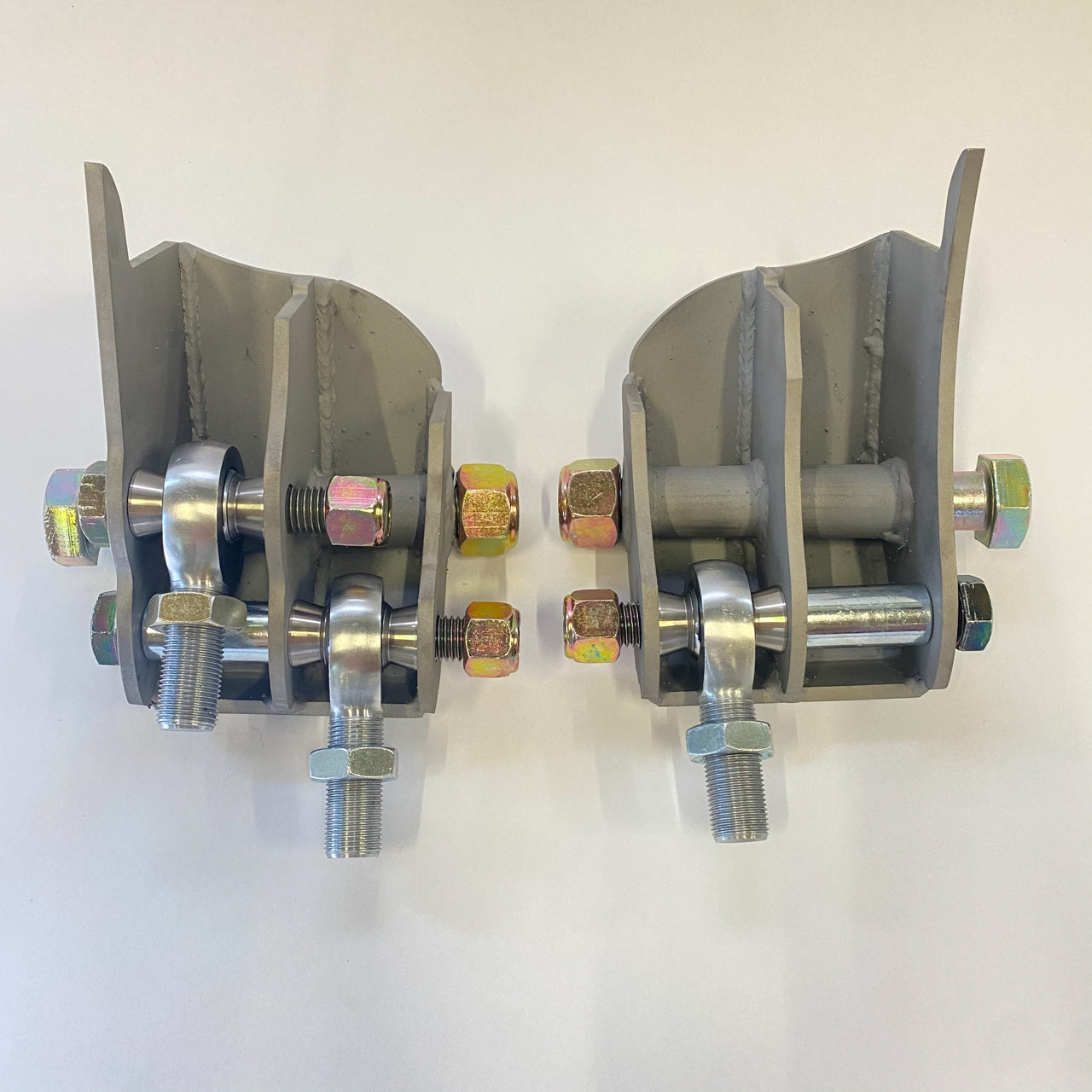

Here's the ultimate weld on high steer arms for your 99-04 Ford Dana 60 and Dana 50!! Laser cut from 1/4" steel, these arms are beefy!! These have multiple locations for mounting your tie rod and drag link.
This kit comes unwelded (bare plate, sleeve and hardware). Basic welding and fabrication skills required to install.
These arms require the hole in knuckle to be drilled to 1"!
Included in this kit- All the plate for high steer arms, sleeve for the 1" through bolt, all the hardware (NO HEIM JOINTS INCLUDED)
Comes set up for 2" wide heim joints and 3/4" bolts. This kit moves the tie rod forward 1 1/4" to clear thick diff covers.

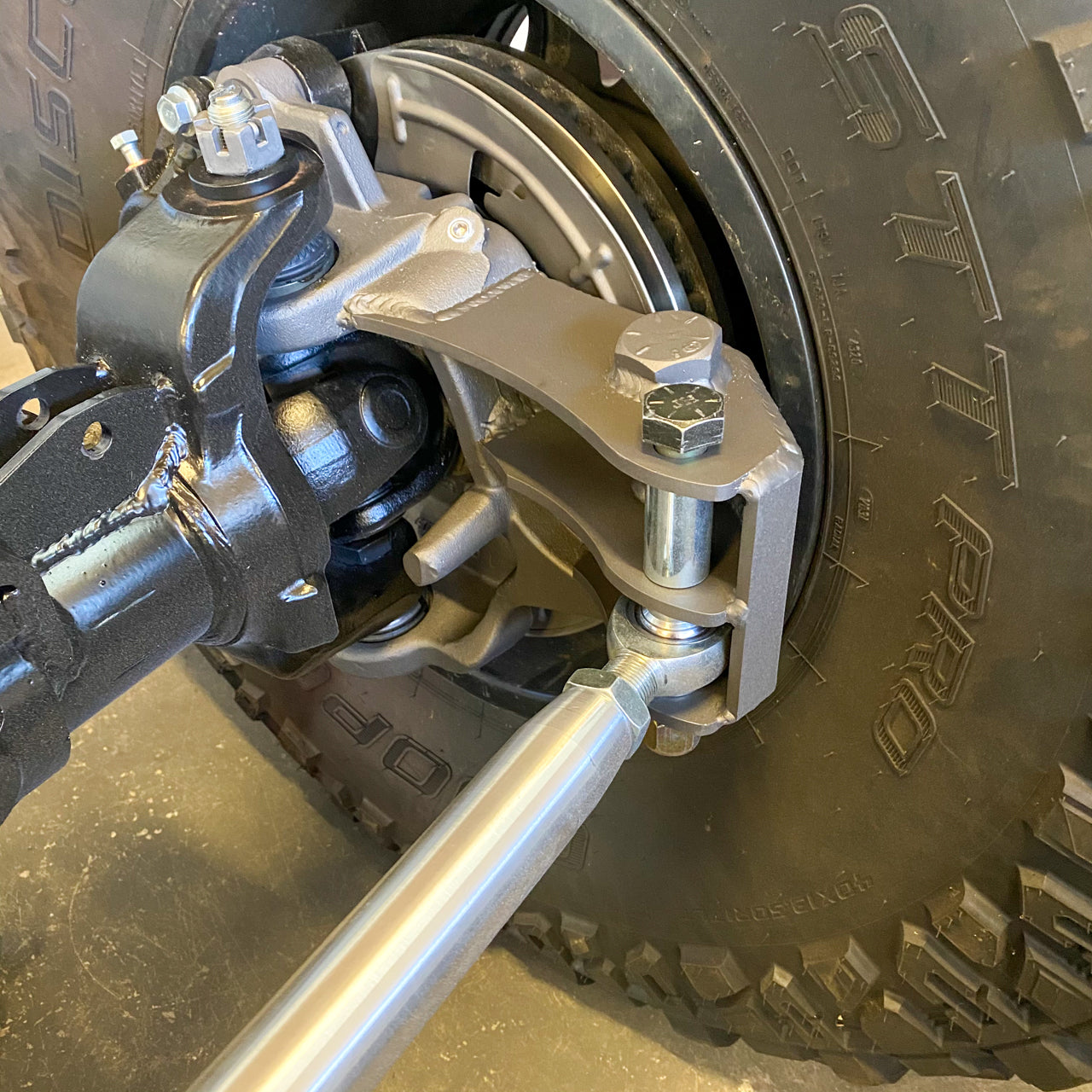

An idea on wheel specs, I run a 17x9 with 4.45" backspacing. I have roughly 1/2" of clearance from the inside lip of wheel to the high steer arms.
