AVR Customs

Powder Coating Oven Build Plans

Powder Coating Oven Build Plans

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out

Have you ever wanted to build your own powder coating oven but don't know where to start?! Here is your solution!!

Check out the videos I made building this oven HERE and HERE

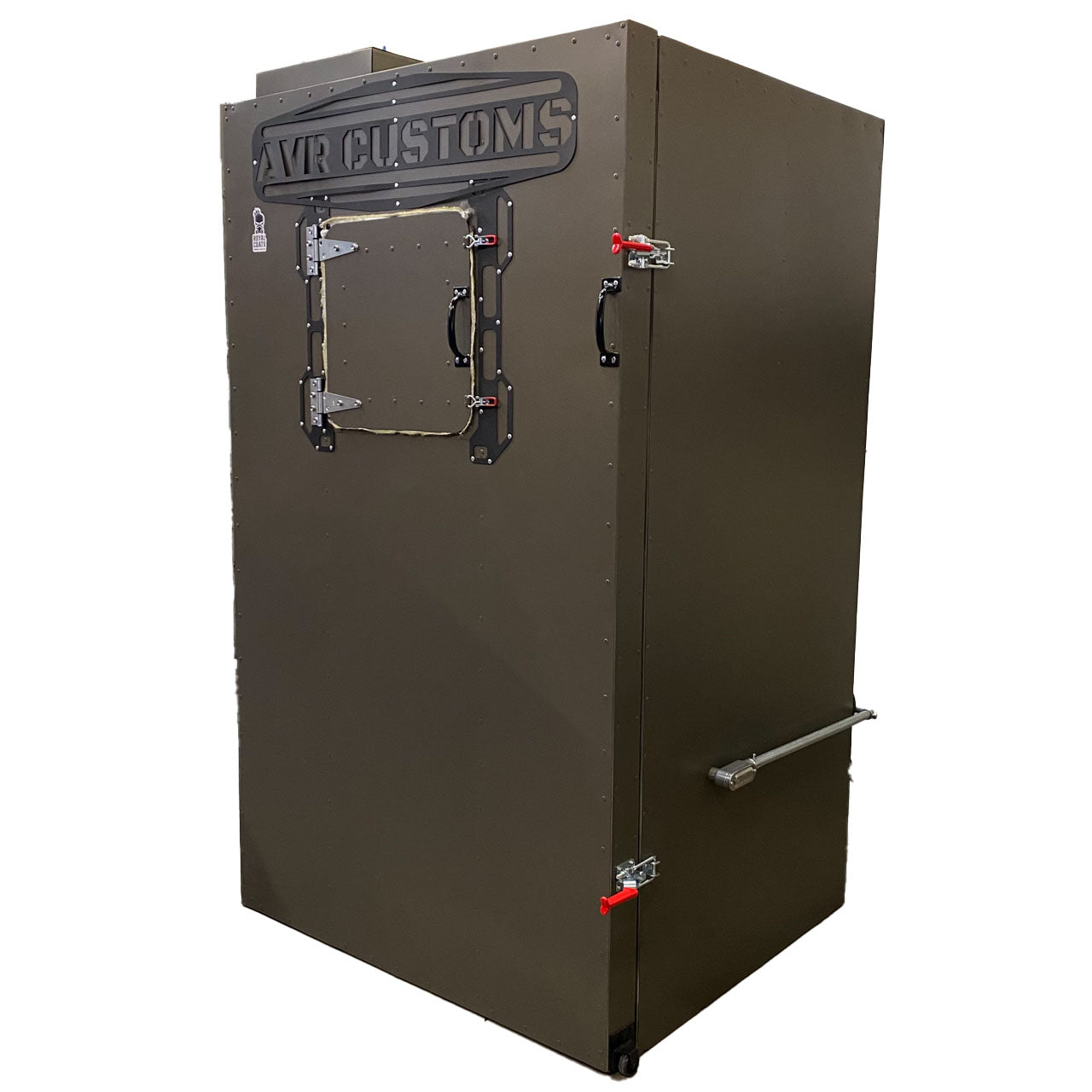

This oven interior dimensions are 40.5” wide, 35” deep, 77.5” tall

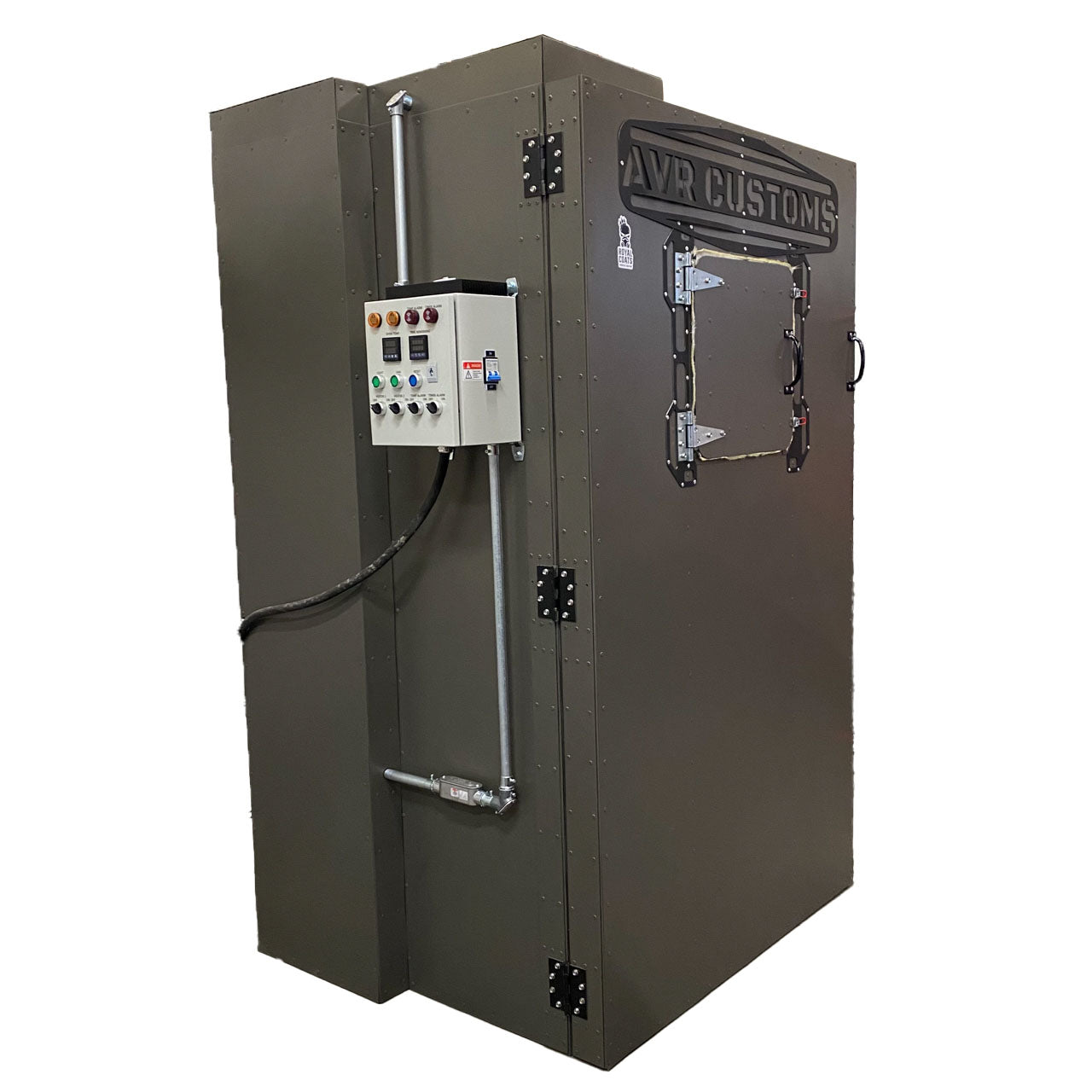

Exterior dimensions are 58” wide, 45” deep and 85” tall (With wiring conduit and control box)

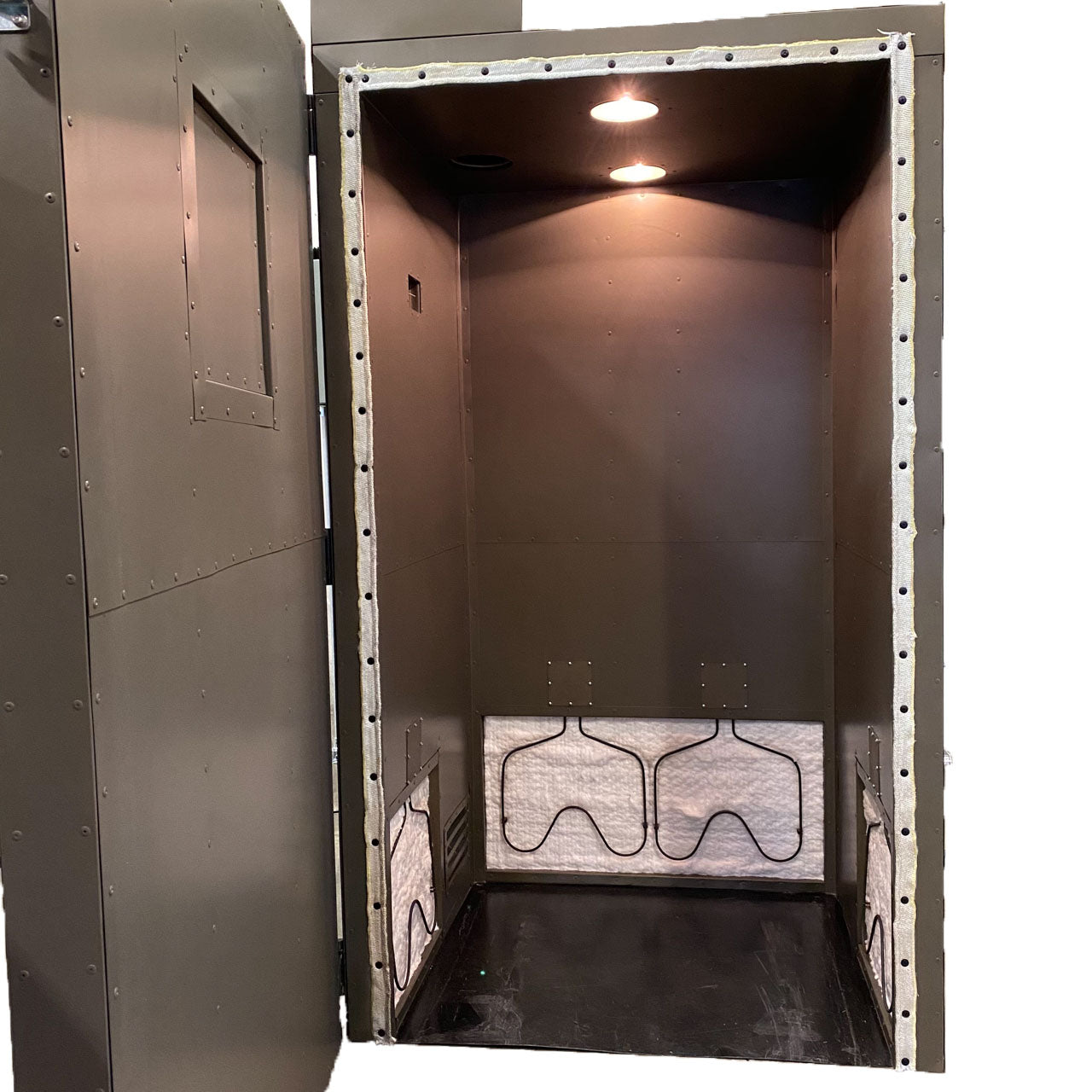

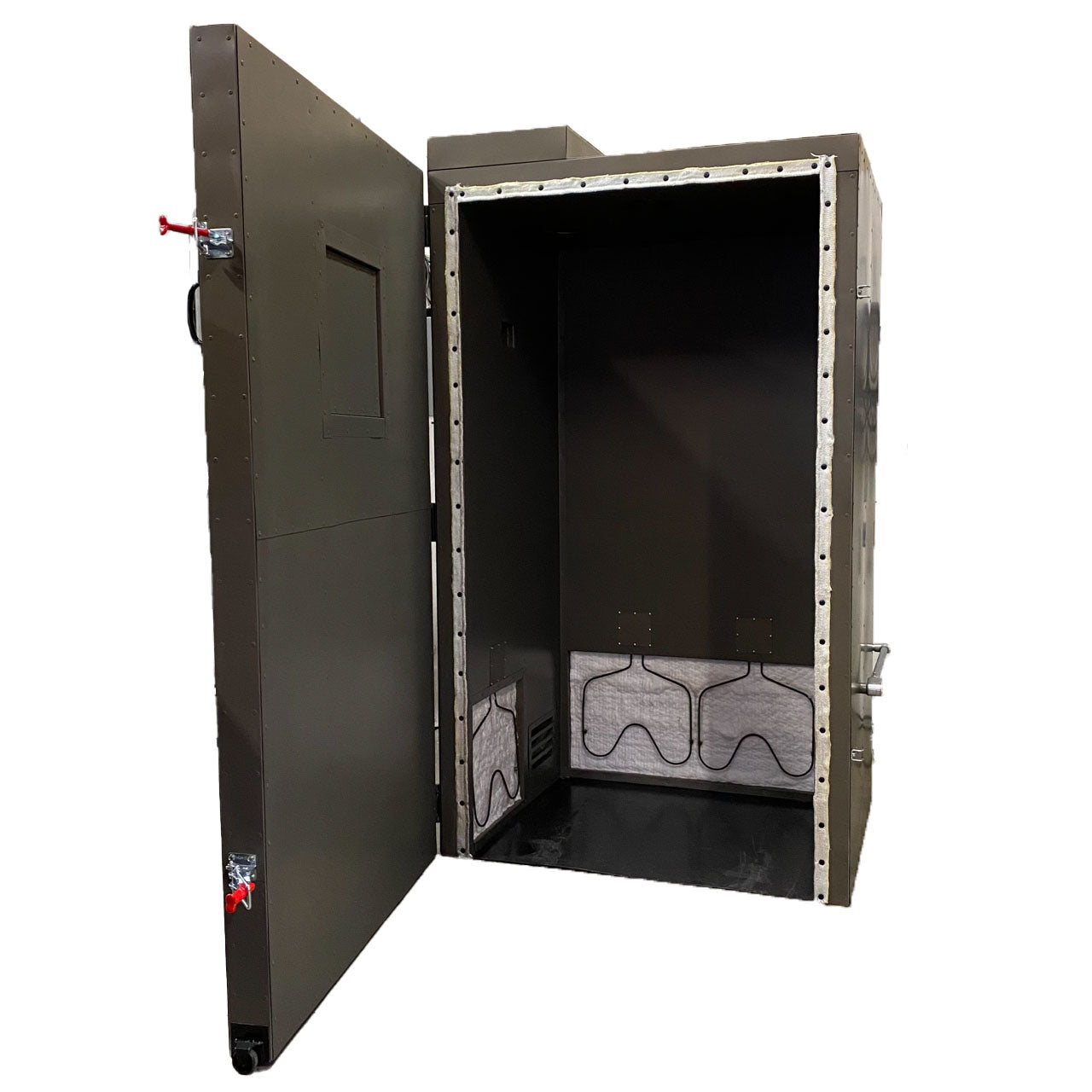

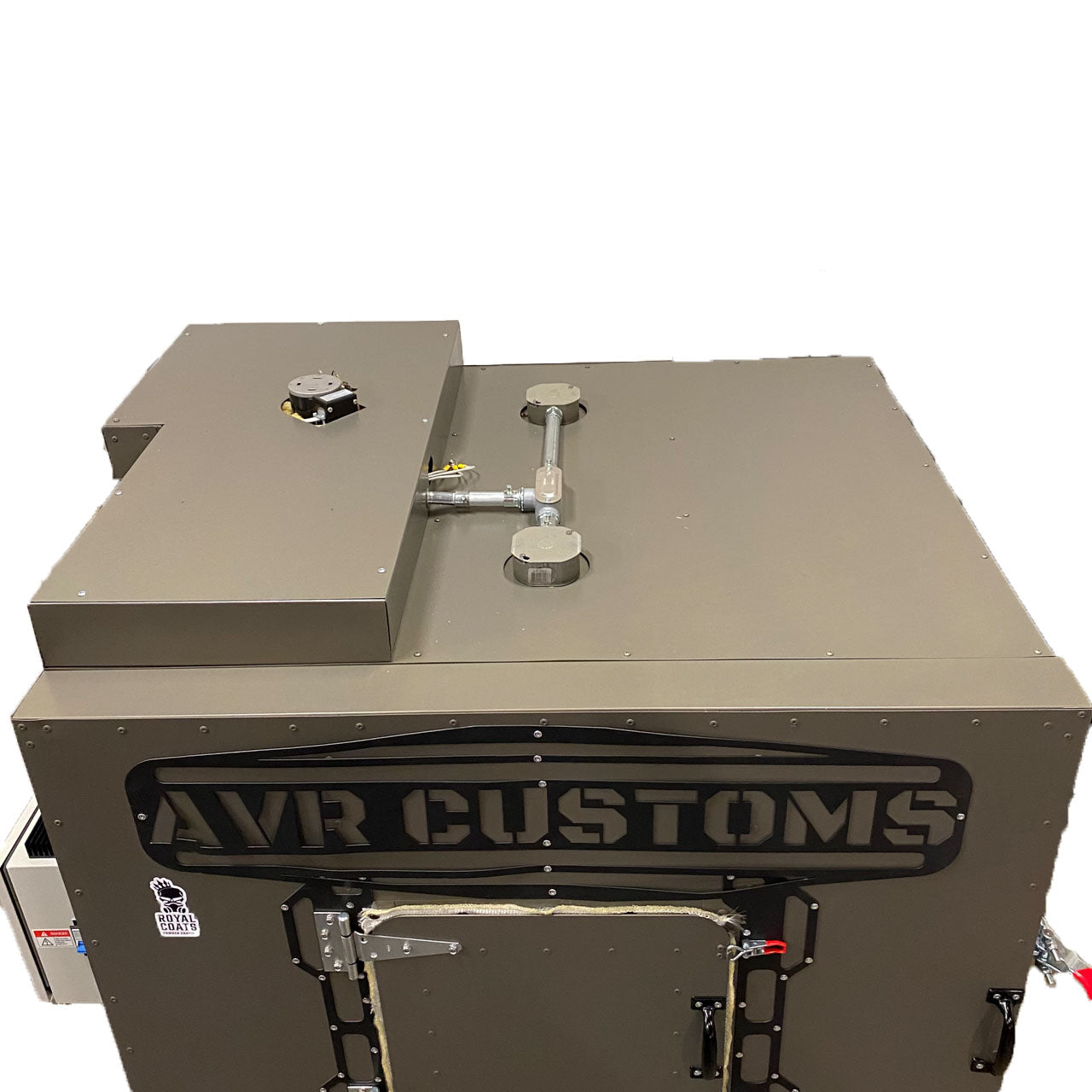

The oven features a circulation fan to keep the temperature inside the oven even, 2 recessed lights, recessed heating elements and recessed thermocouple! This one has a sheet metal floor to allow a cart to be rolled in and out.

These build plans take all the hassle and guess work out of building your own oven.

Complete step by step build plans with drawings of each piece, dimensions, tool and material lists.

The build plans and optional DXF file are immediately available for download after purchase!

THERE ARE ABSOLUTELY NO RETURNS OR REFUNDS OF DIGITAL DOWNLOAD SALES!!!

View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
B_Rad Johnson
Love the oven

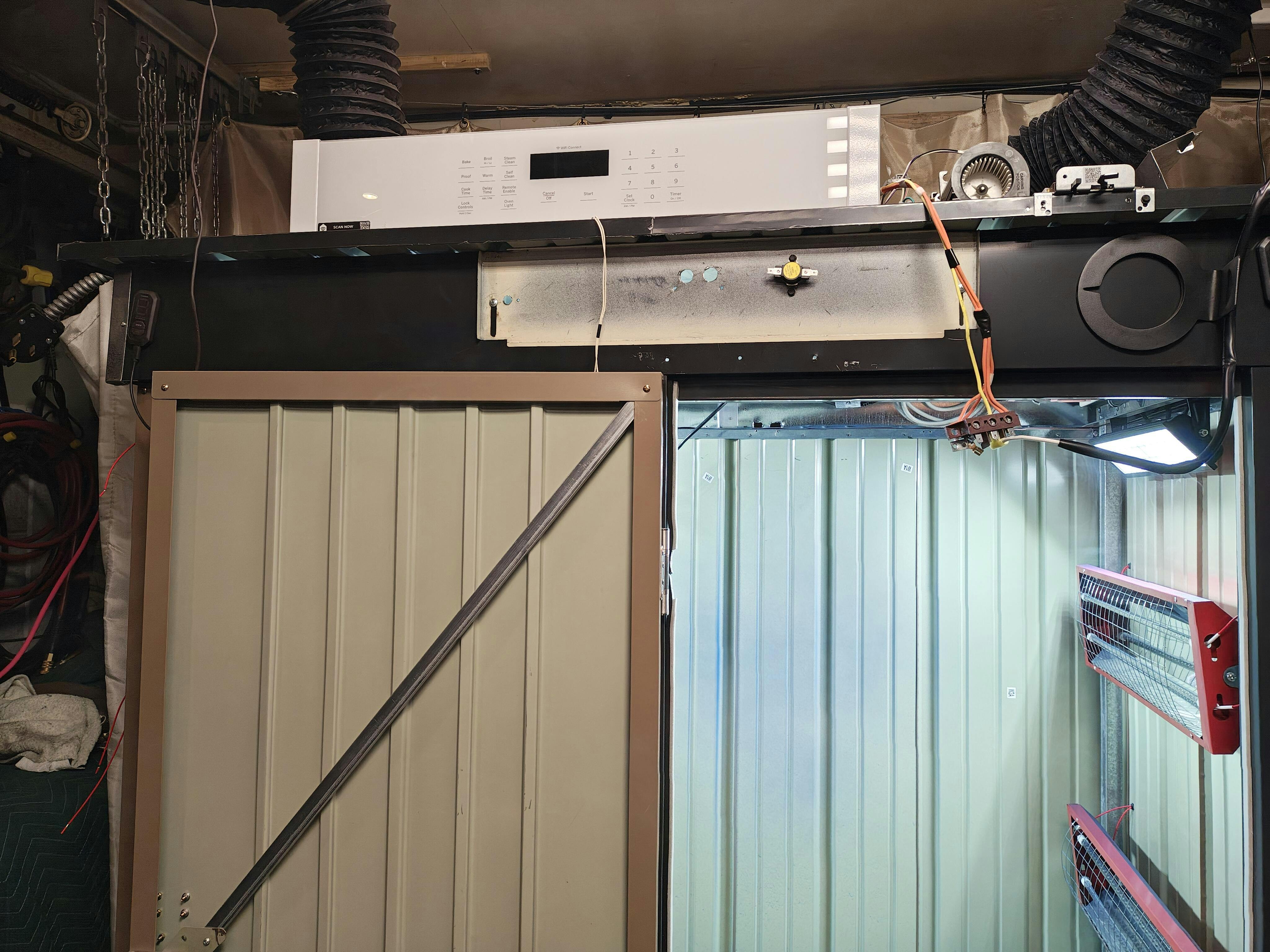

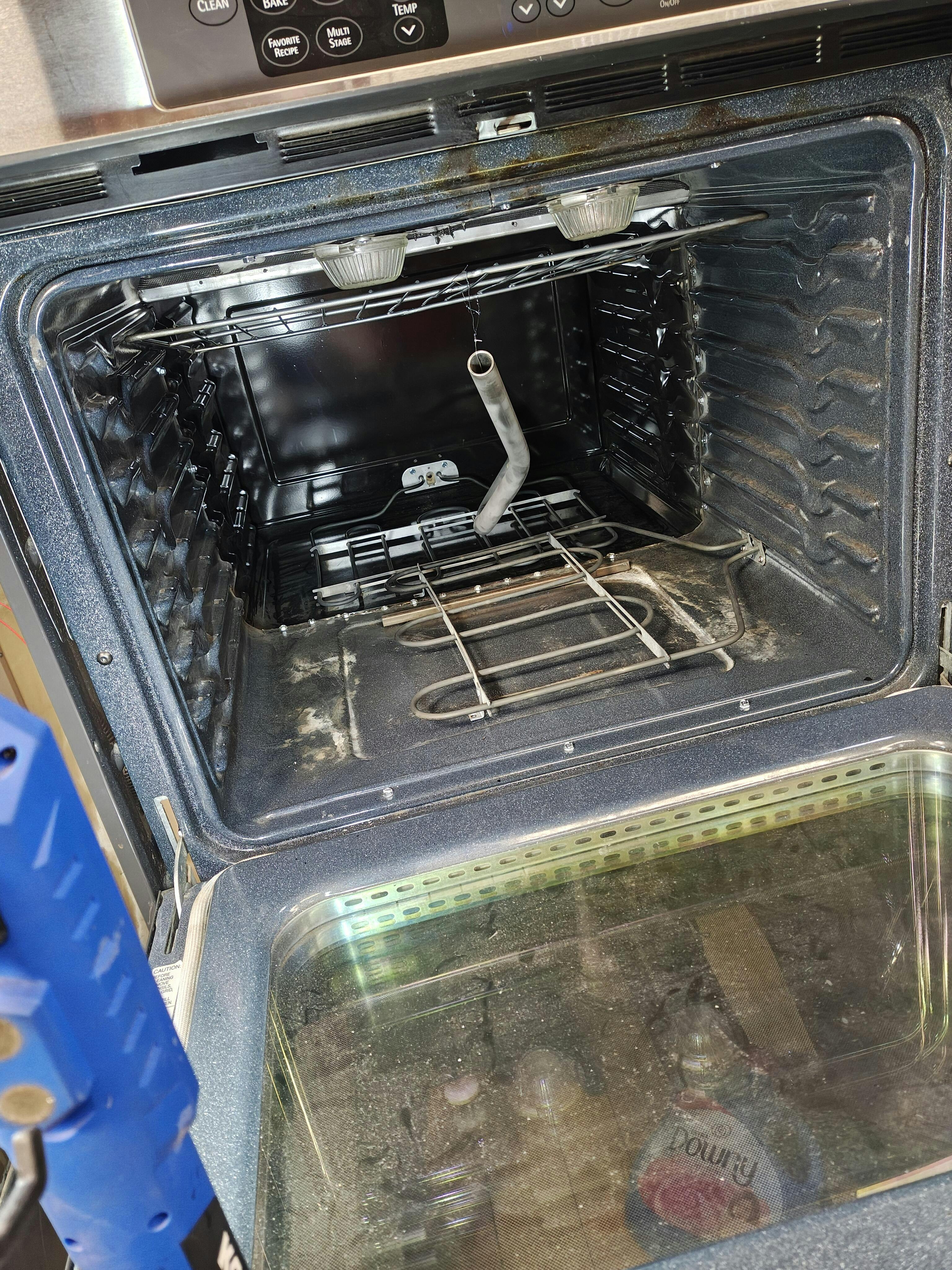

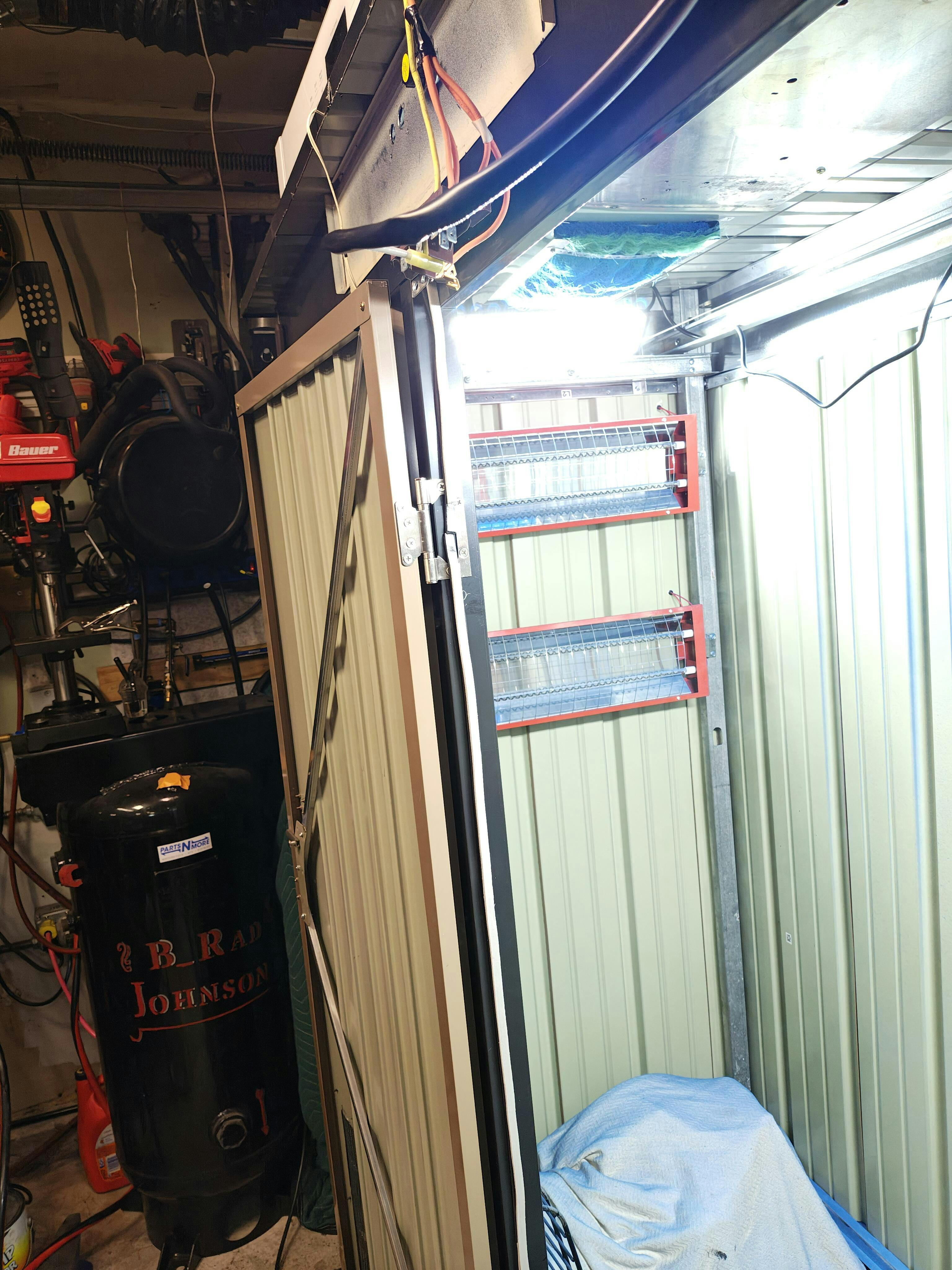

That's how that oven turned out that is incredible,I jumped here before I finished the video,that's probly one of the best I've seen so far.i am in the middle of building one but really getting no way because I didn't know what I wanted. But I'll tell you now I do,I haven't finished reading about the plans but I hope the electrical plans come with it. I doubled one up ,then the other I turned into infrared. The idea was there but the metal is one step past tin foil but I need to build real one
