99-04 Ford Dana 60 50 Weld On High Steer Arms

Regular price $185.00

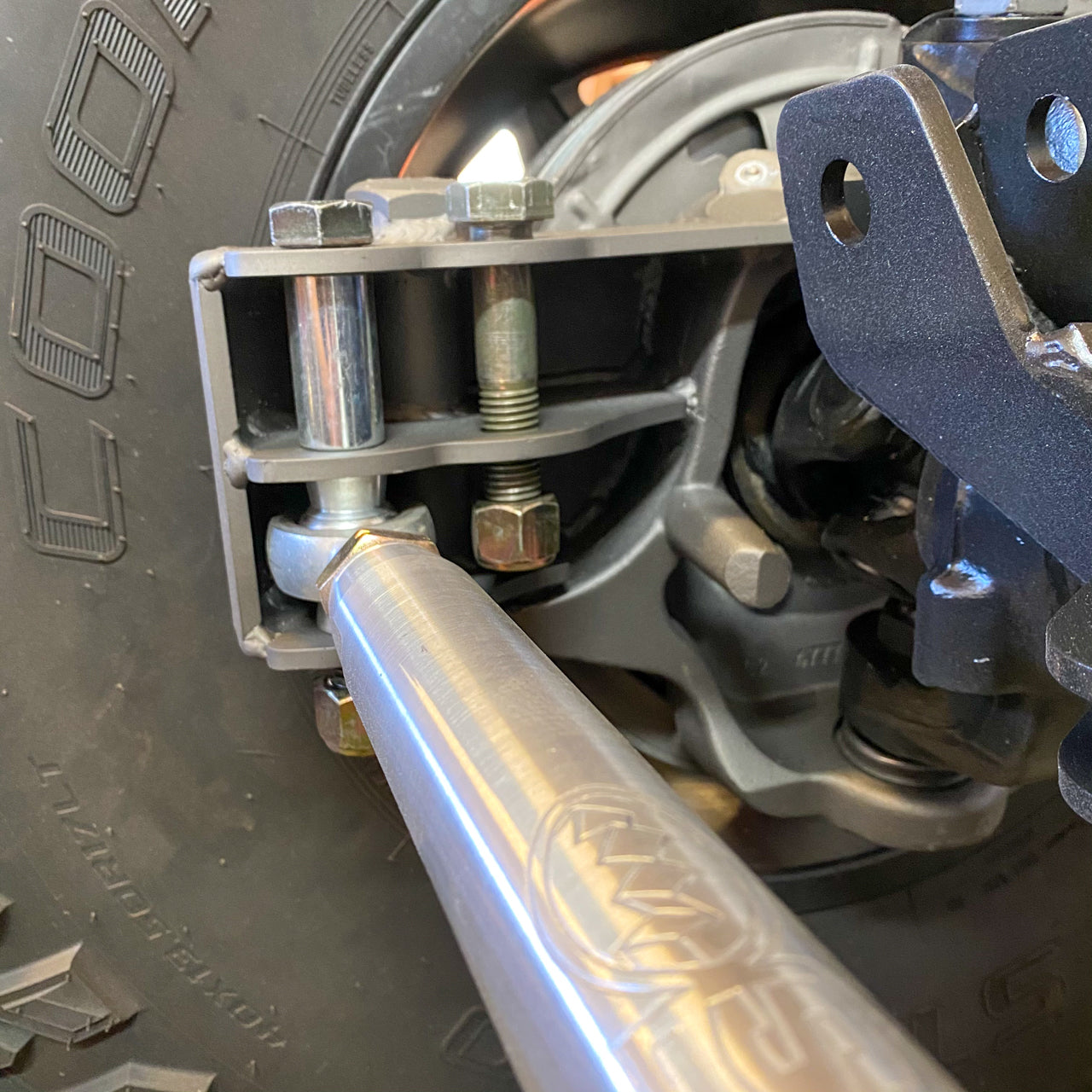

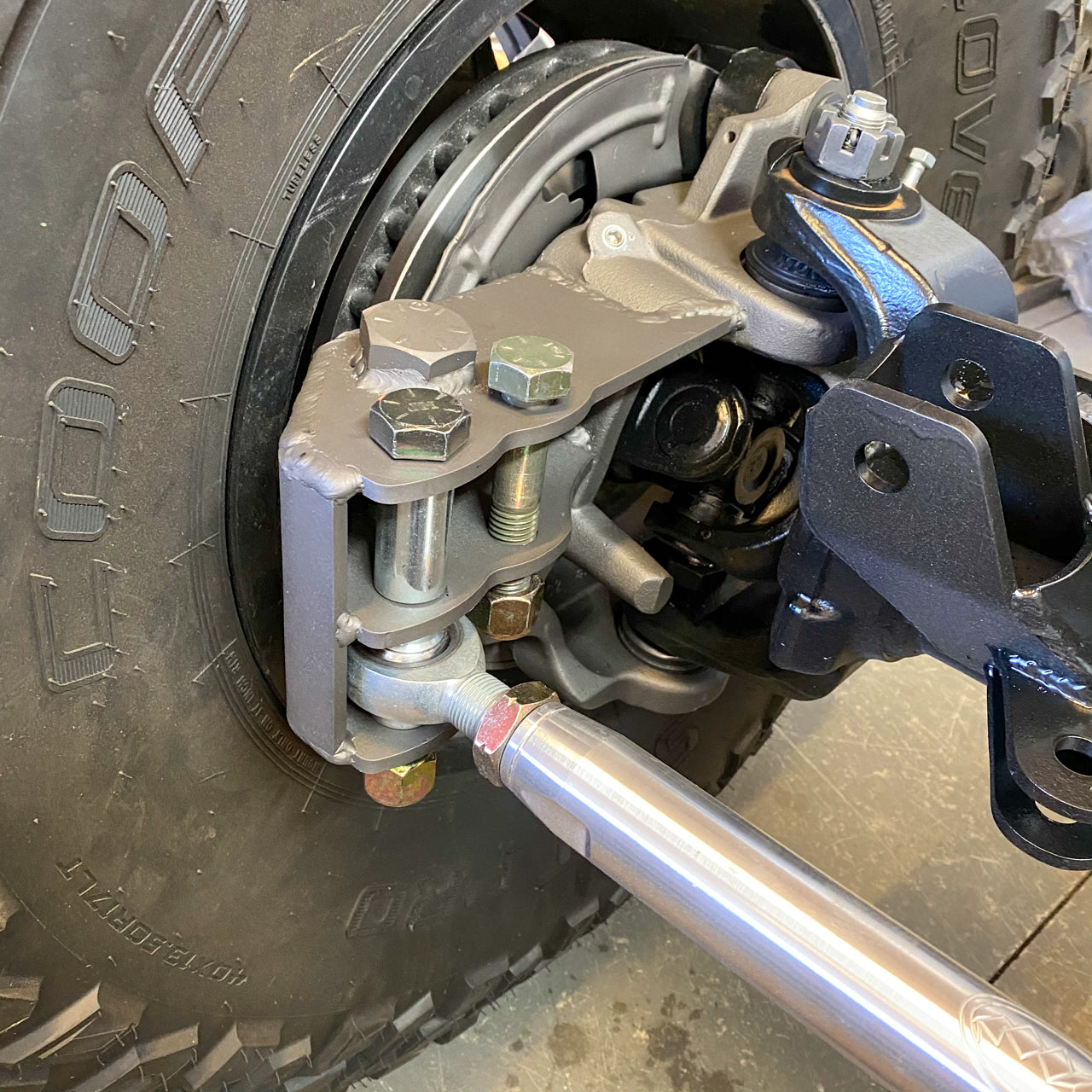

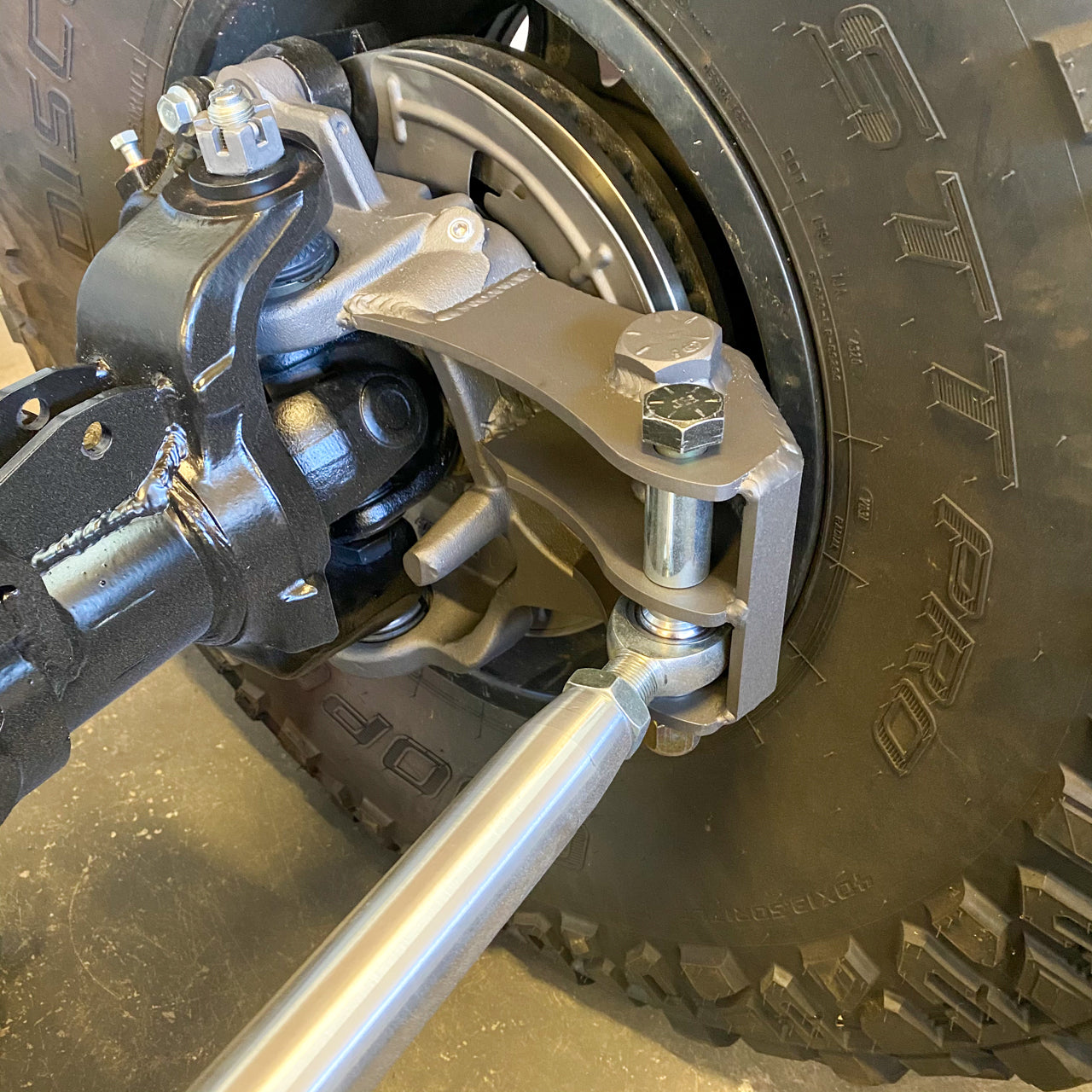

Here's the ultimate weld on high steer arms for your 99-04 Ford Dana 60 and Dana 50!! Laser cut from 1/4" steel, these arms are beefy!! These have multiple locations for mounting your tie rod and drag link.

This kit comes unwelded (bare plate, sleeve and hardware). Basic welding and fabrication skills required to install.

These arms require the hole in knuckle to be drilled to 1"!

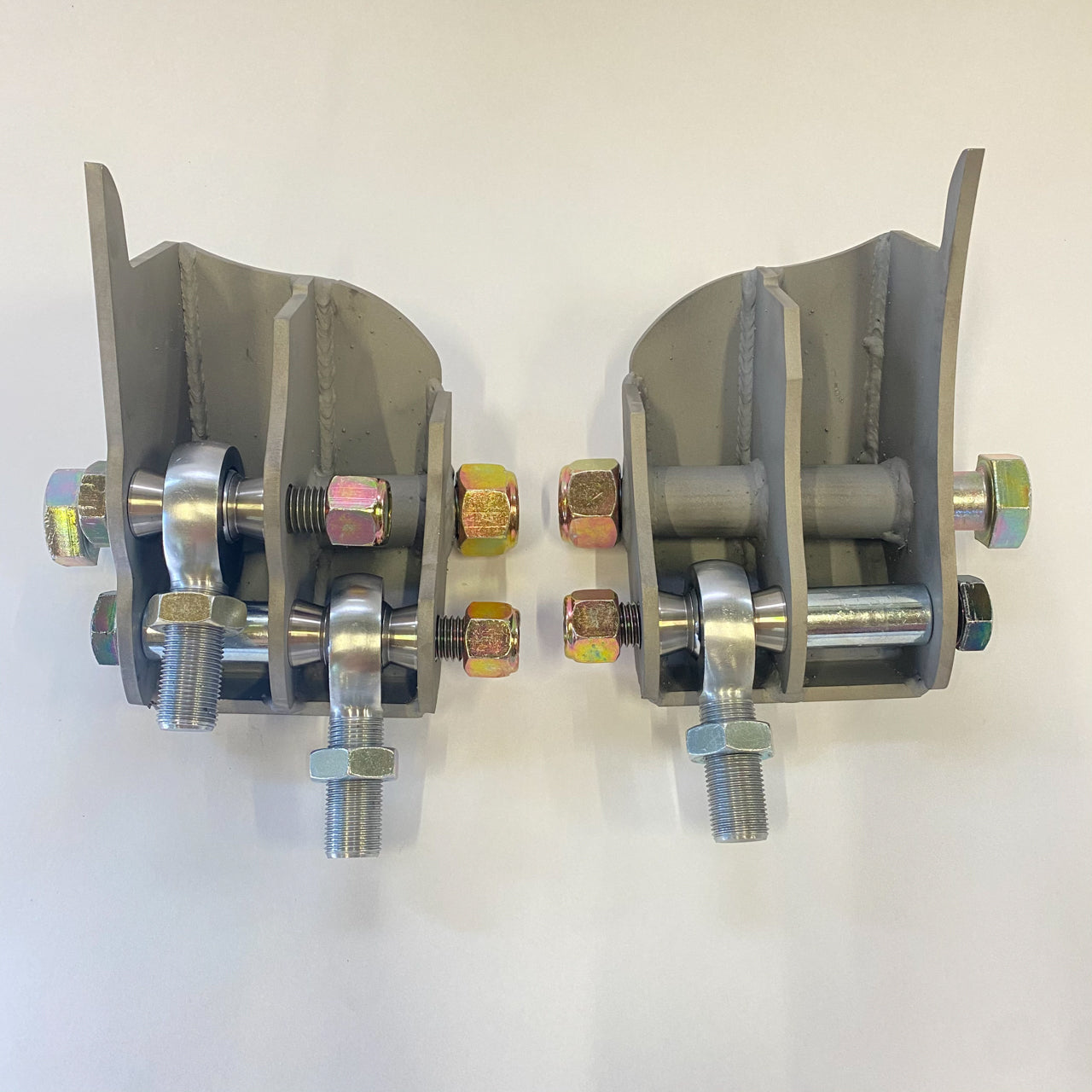

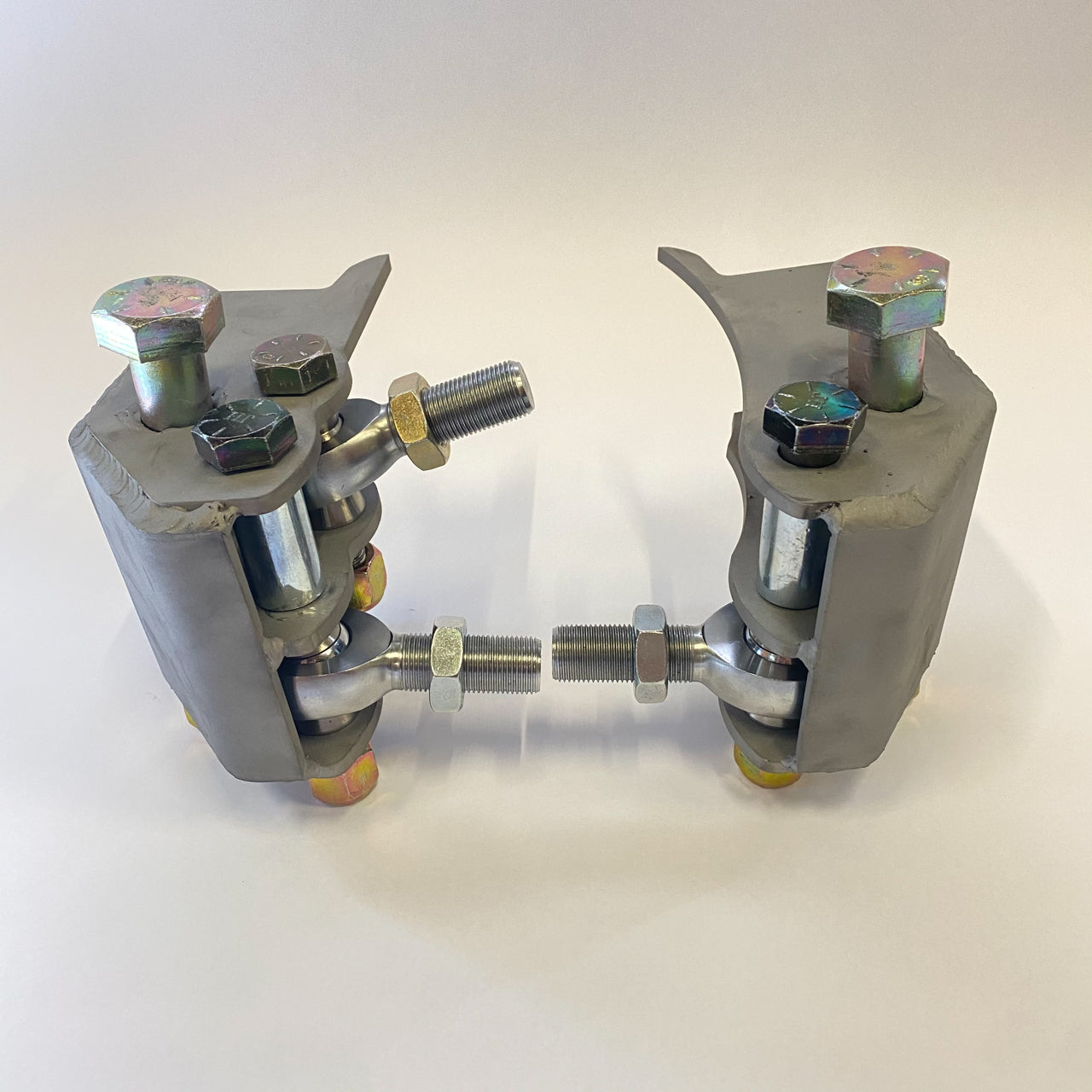

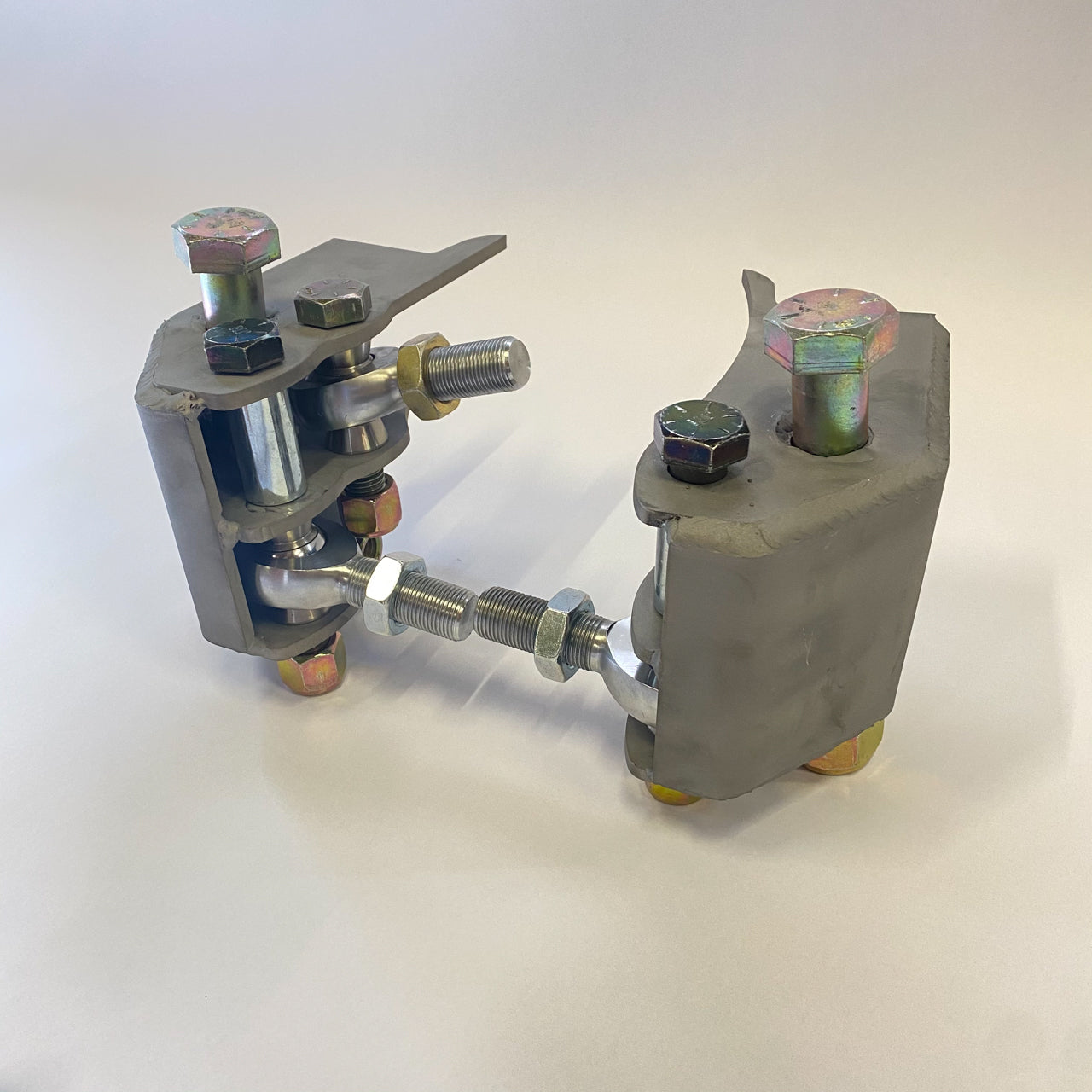

Included in this kit- All the plate for high steer arms, sleeve for the 1" through bolt, all the hardware (no heim joints included)

Comes set up for 2" wide heim joints and 3/4" bolts. This kit moves the tie rod forward 1 1/4" to clear thick diff covers. Drag link is set 7" from ball joint (needs to match your pitman arm length)

Need custom hole locations? I can do that too!! Add to the notes section at checkout or email me austin@avrcustoms.com
